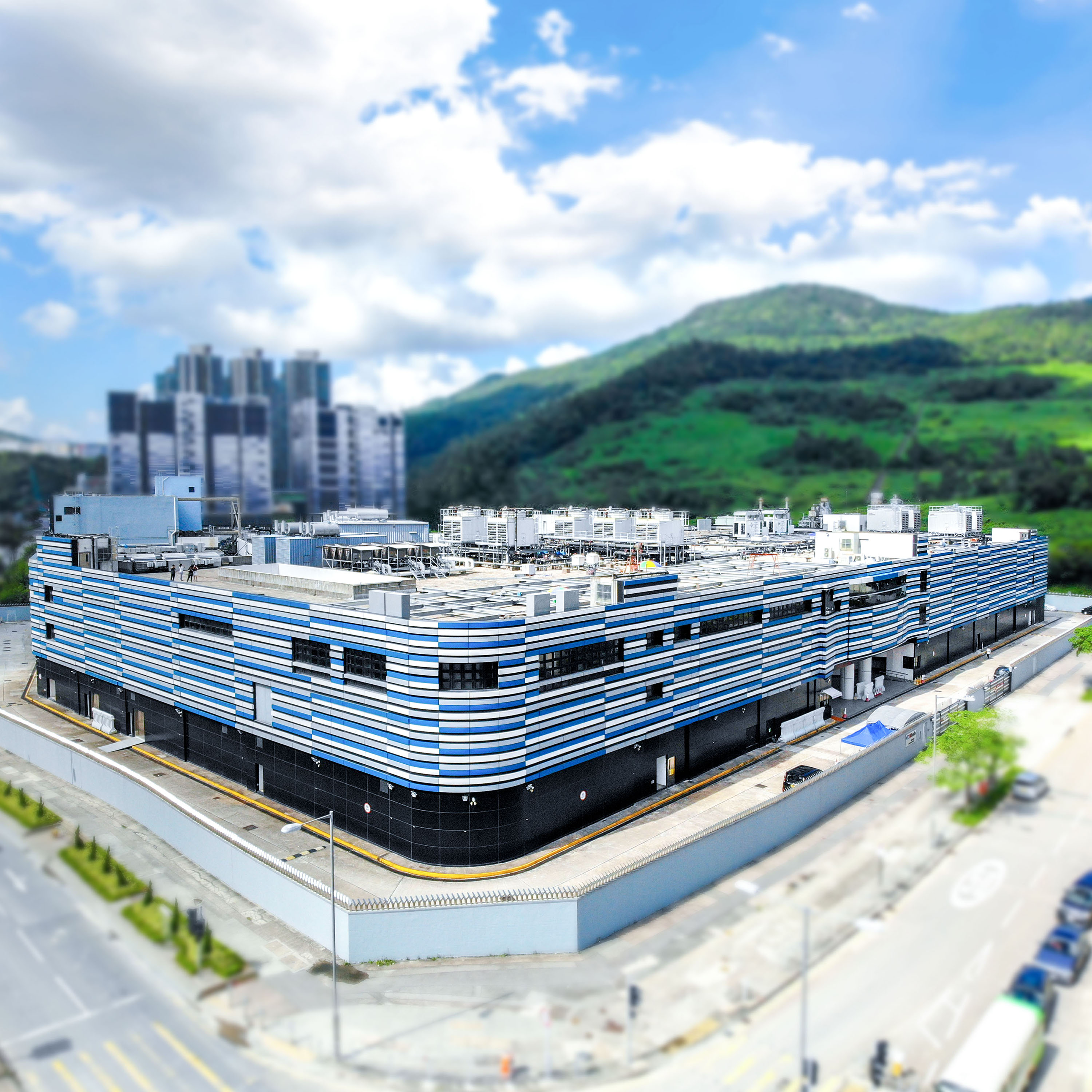

CLOUD COMPUTING COMPLEX

Tseung Kwan O Industrial Estate

It is the first data center certified by TIA-942 as Rated 4/Tier 4 in the financial region spanning across China, Japan, Korea and Singapore.


Infrastructure

Building Features

Location 2 Chun Yat Street, Tseung Kwan O, New Territories, Hong Kong
Site Area 182,783 sq.ft.
Total Gross Area Space 364,131 sq.ft.
Building 3-storey building with rooftop
Construction Reinforced concrete with concrete roofing structure
Floor to Beam 4,300 mm (G/F) | 3,000 mm (1/F and 2/F)
Floor Loading 1,500 kg/m² (G/F) | 750kg/m² (1/F and 2/F)

Power

Power Supply to Cabinet 220V, 10x13A sockets, 3kVA power provision
UPS N+1, 2N with 15mins battery backup
Transformer & Generator N+1, 2N
Diesel Tank 24-hour supply plus contract with fuel company for refill within 4 hours
DC and Other Power Option Available upon request

Air-Conditioning

Temperature 18℃ ± 27℃
Relative Humidity 30% to 70%
Cooling Capacity CRAC N+1 design

Fire System

Fire Detection VESDA and smoke detection
Fire Suppression FM-200, Novec and pre-action sprinkler system

Security

Physical Security
  • Building perimeter with 10.8 ft high concrete security fencing
  • Hydraulic road blockers and bollards
  • 20 ft wide private driveway
  • 24 x 7 security guards
Surveillance
  • Digital CCTV recording of all aspects of the site
Access Control
  • Card key with PIN and other security control
  • Emergency exits are wired with alarms

Technical Support

Network Operation Center (NOC)
  • 24x7 NOC and technical support team provide first-level smart hands support and higher-level engineering support services

Other Facilities

Parking Parking spaces for cars, lorry and containers
Loading Bay Dock leveller, loading space for lorry and containers
Rooftop Roof rights and space available upon request
Flexible Space Designation Flexible partitioning of the floor space is available with restricted access
Cabinet Available Standard 19" cabinet is available and 23" cabinet available on special order
Suite/Room Available Private space constructed according to client specs
Note:
Other options are available upon request. The above specifications are standard supply and are subjest to change without prior notification.
